Spin casting machine and silicone rubber
| |
|
Centrifugal casting machines
| Semi-automatic centrifugal casting machine |
It is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.
Features:
- Digital speed display.
- Digital timer for centrifugal time setting.
- Cover Automatic open / close design, effectively saving time and labor.
- Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options
- Safety protection of the centrifugation area
- Electronic emergency brake system
- Easy operated and maintained.
| Model |
SC12 |
SC14 |
SC16 |
SC18 |
SC20 |
SC25 |
| Mold dia. max |
12" |
14" |
16" |
18" |
20" |
25" |
|
Mold thick,max
|
120mm
|
|
Pressure
|
0-7KG
|
| Power |
0.75Kw |
1.5Kw |
1.5Kw |
1.5Kw |
2.25Kw |
3.0Kw |
|
Speed
|
50-1400rpm
|
|
 |
| |
|
|
| Semi-automatic vacuum centrifugal casting machine |
| It is used to produce precision casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from zinc alloy or tin-lead alloy. |
|
Features:
- Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged.
- Digital speed display.
- Digital timer for centrifugal time setting.
- Cover Automatic open / close design, effectively saving time and labor.
- Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options
- Safety protection of the centrifugation area
- Electronic and pneumatic double emergency brake system
- Easy operated and maintained.
| Model |
VSC12 |
VSC14 |
VSC16 |
VSC18 |
VSC20 |
VSC25 |
|
| Mold dia. max |
12" |
14" |
16" |
18" |
20" |
26" |
| Mold thick,max |
120mm |
| Clamping Pressure |
0-0.7Mpa |
| Centrifugal |
Power |
1.5kw |
|
1.5kw |
1.5kw |
1.5kw |
2.25Kw |
3.0Kw |
| Speed |
50-1400rpm |
| Vacuum pump |
Pressure |
0.07Mpa |
| Power |
0.75K |
0.75Kw |
0.75Kw |
0.75kw |
1.5kw |
1.5kw |
|
|
|
|
Semi-automatic 3-station Centrifugal Casting Machines
Application:
It is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy, tin alloy, other metals, wax, or resin. Production output up to 200 casting operations per hour.
Features:
- Welded steel structure
- Precious Index rotary table, speed adjustable.
- Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
- Variable frequency drive adjust centrifugal speed and indexing speed from 0-1400 rpm.
- Safety protection of the centrifugal area.
- Touch screen control panel digital display all functions, speed, time.
- PLC setting and controlling all cycle functions, centrifugal time, centrifugal speed.
- Automatically diagnoses whether the rubber mold is placed or not.
- Built-in fan forced cooling rubber mold improved working life of the mold.
- Easy operated and maintained
-
| Model |
STSC12 |
STSC14 |
|
| Mould diameter max |
12” |
14” |
| Mould Thickness |
0-100mm |
0-100mm |
| Pressure |
0-7KG |
0-7KG |
| Centrifugal motor |
1.5kw |
1.5kw |
| Centrifugal speed |
50-1400rpm |
50-1400rpm |
| Indexing motor |
0.4kw |
0.4kw |
| Indexing speed |
50-1400rpm |
50-1400rpm |
-
|
|
|
|
| Automatic 3-station centrifugal casting machine |
| It is used to produce castings such as buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from low melting zinc alloy, tin alloy or pewter alloy in the rubber mold. Production output up to 240 casting operations per hour. Features:
- Compact design, spin casting and metal melting furnace integrated together.
- Tri-station for high efficiency.
- Precious Index rotary table, speed adjustable.
- Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
- Independent mould pneumatic camping system with independent pressure regulator and pressure gauge.
- Variable frequency drive adjusts centrifugal and indexing speed from 0-1400 rpm
- Specially designed heated casting channel controlled by thermostat reduces the operation temperature of the metal and extend the working life of the channel.
- Safety protection of the centrifugal area.
- Touch screen control panel digital displays and sets all functions, speed, time and temperatures etc.
- PLC setting and controlling all production cycles, time, speed, rotary direction, temperatures, etc. Programmer and store of the setting for each mold.
- Automatically diagnoses whether the rubber mold is placed or not.
- Built-in fan forced cooling rubber mold improved working life of the mold.
- Easy operated and maintained
| Model |
ATSC12 |
ATSC14
|
| Station |
3 |
| Mold dia. max |
12" |
14"
|
| Mold Thickness, max |
120mm |
| Pressure |
0-7KG |
| Centrifugal motor |
1.5KW |
| Centrifugal speed |
50-1400rpm |
| Indexing table motor |
0.4KW |
| Indexing speed |
50-1400rpm |
| Furnace loading |
80kg (zinc alloy) |
| Furnace |
9.0KW |
| Casting channel |
4.0KW |
| Option |
Platform |
|
 |
|
|
| Automatic centrifugal casting machine |
|
| Automatic centrifugal casting machine is used to produce precision casted buckles and accessories for the leather industry and garment industry, jewelry, promotion gifts, medal, and figurines etc. from low-melting zinc alloy or tin-lead alloy. Features:
- Compact design, spin casting and metal melting furnace integrated together.
- High efficiency.
- Automatic feeding and automatic control make precision repeat production, and effectively saving time and labor.
- Variable frequency drive adjusts centrifugal speed from 0-1400 rpm.
- Safety protection of the centrifugal area.
- Touch screen control panel digital display and setting, speed, spinning time and fill time, etc.
- PLC setting and controlling production cycles, time, speed and formulas.
Programmer and store of the setting.
- Automatic diagnose mold missing.
- Built-in fan forced cooling rubber mold improved working life of the mold.
- Easy operated and maintained。
| Model |
ASC9 |
ASC12
|
| Station |
1 |
| Mold dia. max |
9" |
12"
|
| Mold Thickness, max |
50mm |
| Pressure |
0-7KG |
| Centrifugal motor |
0.75KW |
| Centrifugal speed |
50-1400rpm |
| Furnace loading |
70kg (zinc alloy) |
| Furnace |
7.5KW |
|
 |
|
|
| Manual centrifugal casting machine |
|
It is used to produce casted buckles and accessories for the leather industry and garment industry, imitation jewellery, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.
Features:
- Digital speed display.
- Timer for centrifugal time setting.
- Digital counter.
- Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options
- Safety protection of the centrifugation area
- Electronic emergency brake system
- Easy operated and maintained.
| Model |
MC12 |
MC14 |
MC16 |
MC18 |
MC20 |
| Mold dia. max |
12" |
14" |
16" |
18" |
20" |
|
Mold thickness,max
|
120mm
|
|
Pressure
|
0-7KG
|
| Centrifugal
|
Power |
0.75Kw |
1.5Kw |
1.5Kw |
1.5Kw |
2.25Kw |
| Speed |
50-1400rpm
|
|
 |
|
|
| Manual vacuum centrifugal casting machine |
|
It is used to produce precision casted buckles and accessories for the leather industry and garment industry, imitation jewellry, promotion gifts, medal, and figurines etc from zinc alloy or tin alloy.
|
|
Features:
1. Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life
prolonged
2. Speed display.
3. Digital timer for centrifugal time setting.
4. Digital counter
5. Varibale frequency driver speed regulation in range 50-1400 RPM for more processing options
6. Safety protection of the centrifugation area
7. Electronic emergency brake system
8. Easy operated and maintained.
| Model |
VMC12 |
VMC14 |
VMC16 |
VMC18 |
VMC20 |
|
Rubber mold dia. max
|
12"
|
14"
|
16"
|
18"
|
20" |
| Mold thickness,max |
120mm |
| Claming pressure |
0-7KG |
| Centrifugal |
Power |
0.75KW
|
1.5Kw
|
1.5Kw
|
1.5Kw
|
2.25Kw |
| Speed |
50-1400rpm
|
| Vacuum pump |
Pressure |
0.07MPa |
| Power |
0.75Kw |
0.75Kw |
0.75Kw |
0.75Kw |
1.5Kw |
|
 |
|
|
| Vulcanizer |
| Automatic vulcanizer PLC controled |
| Automatic vulcanizer for curing silicone or organic rubber moulds.
Features:
1. PLC Automatic intelligent vulcanizing control.
2. Touch-screen control panel
3. Automatic pressure regulation.
4. Digital temperature controller.
5. Curing cycle timer.
6. Automatic forced cooling
7. Digital display pressure, temperature and time.
8. Maximum pressure protection
9. Hydraulic group with motor pump and oil pressure release valve.
10. Electro-valve controlled plate opening.
11. Environmental and energy saving insulation design to provide a better temperature uniformity and energy cost saving.
|
Model
|
APM12-I
|
APM14-I
|
APM16-I
|
APM18-I
|
APM20-I |
|
|
12”
|
14”
|
16”
|
18”
|
20" |
|
|
150mm |
|
|
6KW
|
6KW
|
9.6KW
|
10.8KW
|
12KW |
| Motor |
1.5KW |
|
|
32T
|
32T
|
50T
|
50T
|
50T |
|
|
|
|
| Automatic vulcanizer |
|
Automatic vulcanizer for curing silicone or organic rubber moulds.
Features:
1. Automatic control
2. Automatic pressure regulation.
2. Automatic temperature control
3. Curing cycle timer.
4. Automatic forced cooling
5. Digital display temperature and time.
6. Maximum pressure protection
7. Environmental and energy saving insulation design to provide a better temperature uniformity and energy cost saving.
|
|
APM12
|
APM14
|
APM16
|
APM18
|
APM20 |
|
|
12”
|
14”
|
16”
|
18”
|
20" |
|
|
150mm |
|
|
6KW
|
6KW
|
9.6KW
|
10.8KW
|
12KW |
| motor |
1.5KW |
|
|
32T
|
32T
|
50T
|
50T
|
50T |
|
|
|
|
|
| Manual vulcanizer |
|
Manual vucanizer press for curing silicone or organic rubber moulds for spin casting.
Features:
1. Automatic temperature control
2. Curing cycle timer.
3. Digital display temperature and time.
4. Heating plates with goods surfaces to assure perfect flatness.
|
Model
|
MVP12
|
MVP14
|
MVP16
|
MVP18
|
MV20 |
|
Mould diameter, max
|
12”
|
14”
|
16”
|
18”
|
20" |
|
Mould thickness, max
|
150mm |
|
Heating
|
4.0KW
|
6.0KW
|
9.6KW
|
10.8KW
|
12KW |
|
Pressure
, max
|
32T
|
32T
|
50T
|
50T
|
50T |
|
 |
|
| |
|
|
| Electric Furnaces |
| |
| Electric furnace AEMF120 |
 |
| Automatic electric furnace AEMF120 is specially designed to be used to melt metal alloy (zinc alloy and tin alloy) for rubber mold centrifugal casting purpose. Features:
-
- Automatic control.
- Energy saving Insulated protection shield and head.
- Safety circuit to prevent overheated.
- Temperature rises rapidly.
- Automatic consistent temperature control.
- Appointment heating start/stop time.
- Casted iron crucible.
Specification:
Power: 9KW.
Loading capacity: 80kg (zinc alloy)
Temperature: 600°C max.
|
|
| Electric furnace EMF120 |
| Electric furnace EMF120 is specially designed to be used to melt zinc alloy and tin alloy for rubber mold centrifugal casting purpose. Features:
-
- Automatic control.
- Energy saving Insulated protection shield and head.
- Safety circuit to prevent overheated.
- Automatic consistent temperature control.
- Appointment heating start/stop time.
- Casted iron crucible.
-
Specification:
Power: 9KW.
Loading capacity: 80kg (zinc alloy)
Temperature: 600°C max.
|
|
|
| Electric furnace EMF50 |
Electric furnace EMF50 is specially designed to be used to melt lead alloy, magnesium zinc alloy for rubber mold centrifugal casting purpose.
Features:
-
-
Automatic control.
-
Insulated protection shield.
-
Safety circuit to prevent overheated.
-
Automatic consistent temperature control.
-
Appointment heating start/stop time.
-
Specification:
Power: 6KW.
Loading capacity: 50kg (lead alloy)
Temperature: 600°C max.
|
|
|
 |

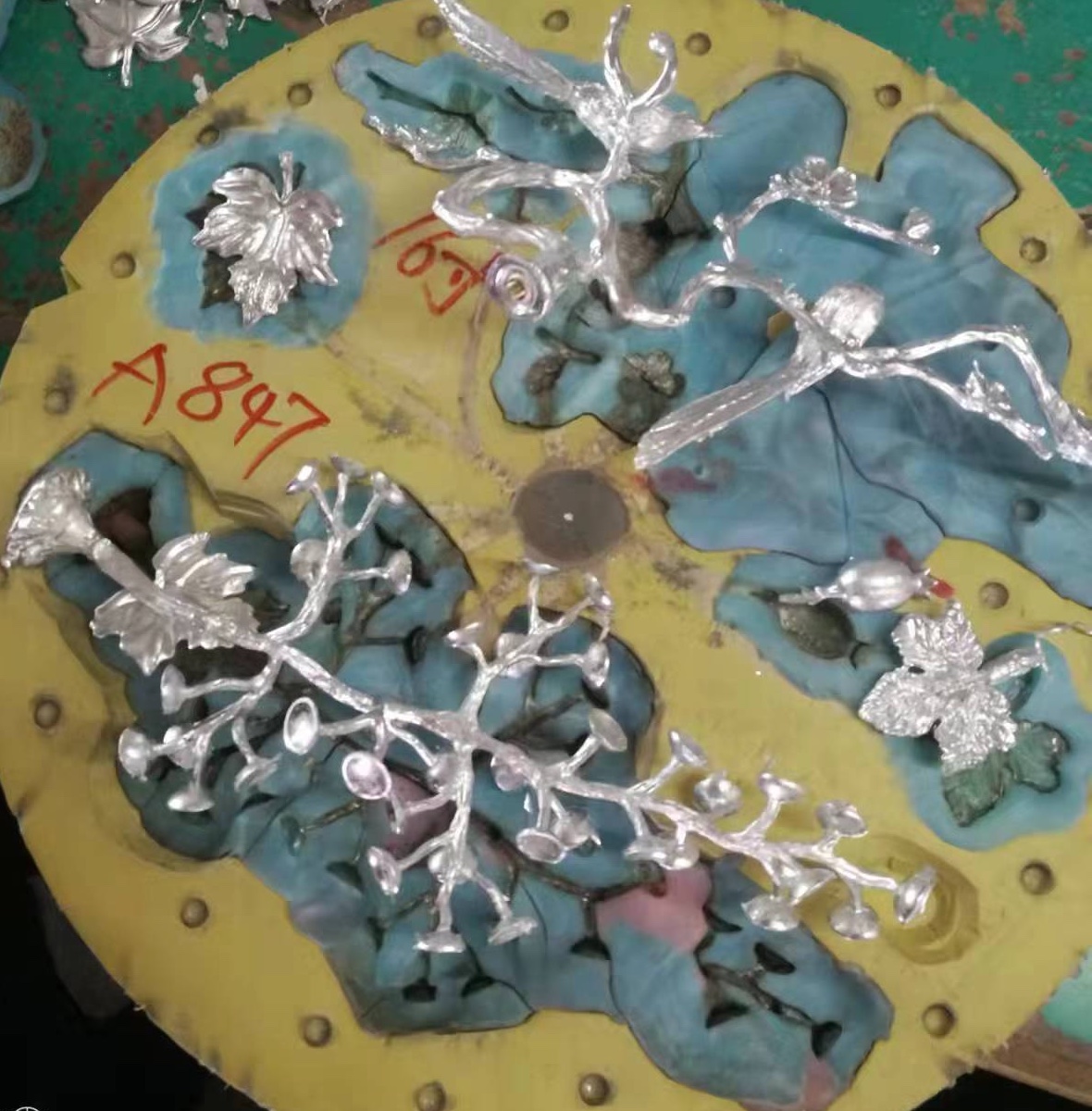

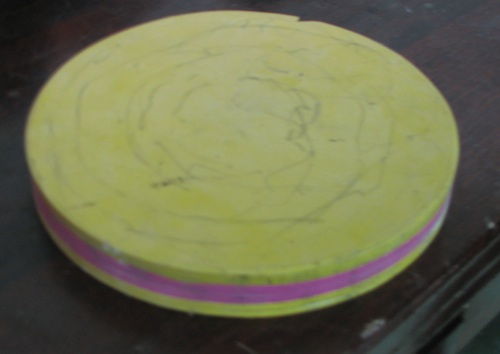

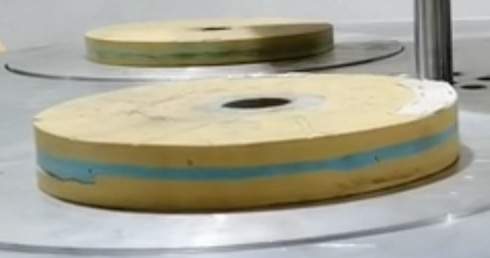

| Silicone Rubber |
Specially formulated silicone rubbers to meet different demands for spin casting of low-melt zinc alloy and tin-lead alloy with high performance and low cost characteristics.
Available sizes
| Available Disc diameter |
Available Disc Thickness |
Remark |
| 6 inch |
14 inch |
Customized from 3mm -10mm. |
Other sizes also available upon requested. |
| 8 inch |
16 inch |
| 9 inch |
18 inch |
| 10 inch |
20 inch |
| 12 inch |
25 inch |
|
 |
|
| |
PA |
GA |
BA |
YB |
| Color |
purple |
Green |
Blue |
Yellow |
| |
|
|
|
|
| Vulcanizing Temperature |
165 °C |
150-165°C |
165°C |
Specially developed cheaper silicon rubber, mainly used to reduce cost,not directly contact alloy. |
| Shore Hardness after vulcanizing |
75 |
65 |
70 |
| Tear-resistant strength |
98Mpa |
80Mpa |
95Mpa |
| Elongation |
0.32 |
0.58 |
0.72 |
| Highest heat-resistance (10 secs |
750°C |
500°C |
500°C |
| Applicable alloy |
Zinc,Zamak |
Tin, lead, flat parts |
Tin, lead,miniature figurines, photo frame etc. |
|
| |
|
|
|
Option Frame:
| Available for mold diameter |
Available for mold thickness |
Remark |
| 6 inch |
14 inch |
Customized from 10mm -80mm. |
Other sizes also available upon requested. |
| 8 inch |
16 inch |
| 9 inch |
18 inch |
| 10 inch |
20 inch |
| 12 inch |
25 inch |
|
|
|
|
|
|
